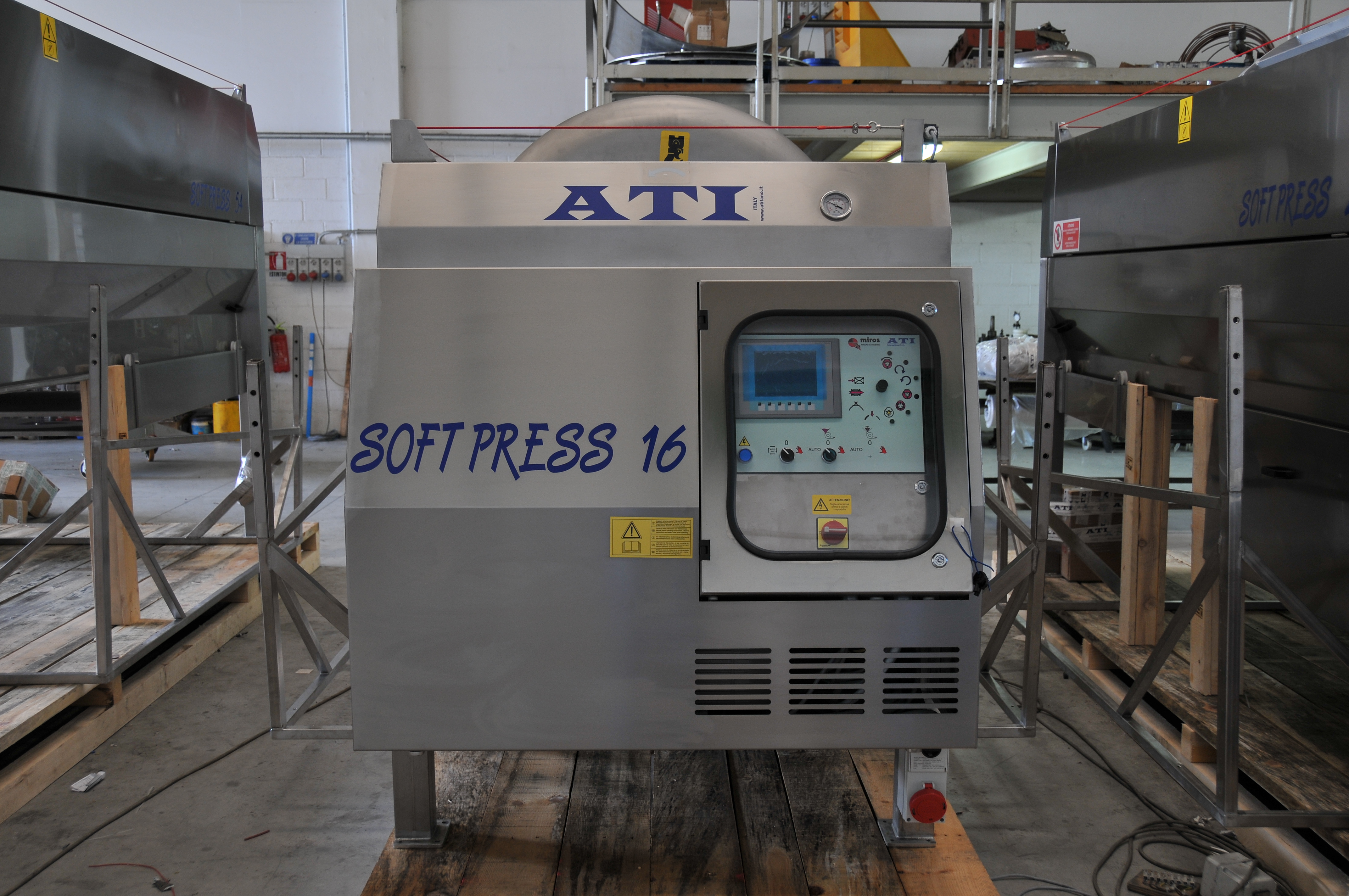

Press with elastic membrane Softpress small, patented system

The SoftPress are pneumatic presses for soft pressing grapes, apples, pomegranate, fruit, herbs and other types of products that you can squeeze. Economic and versatile, equipped with one or more manual doors with large size to facilitate loading/unloading operations, 360° drilled tank, central elastic silicone membrane. Electronic programmer Siemens latest generation with work programs “FREE”, without limitation of imagination to realize your work cycle. Possibility of accessories to make your machine even more efficient adapting to your way of working

Press with elastic membrane Softpress small, patented, for grapes, apples, pomegranate and fruit

  • Press with elastic membrane, patented, for soft action
  • Maximum working speed using the maximum drainage surface
  • Tubular elastic membrane (patented system), silicone suitable for contact with foods
  • Constructed entirely of stainless steel AISI 304 360° drilled tank
  • Four wheels, two with brake
  • Reversible wort collection tank
  • Evacuation system pomace exhausted by internal guides
  • Door with manual opening and closing of large dimensions for unloading pomace
  • Possibility of 2 or 3 loading and unloading ports radial or longitudinal sliding
  • Axial loading device positioned on the axis of the cylinder head
  • Charge with a stainless steel manual valve diam. 100/120 mm
  • Built-in turbine for low pressure and vacuum
  • Built-in compressor for high pressure dry running
  • PLC of last generation Siemens

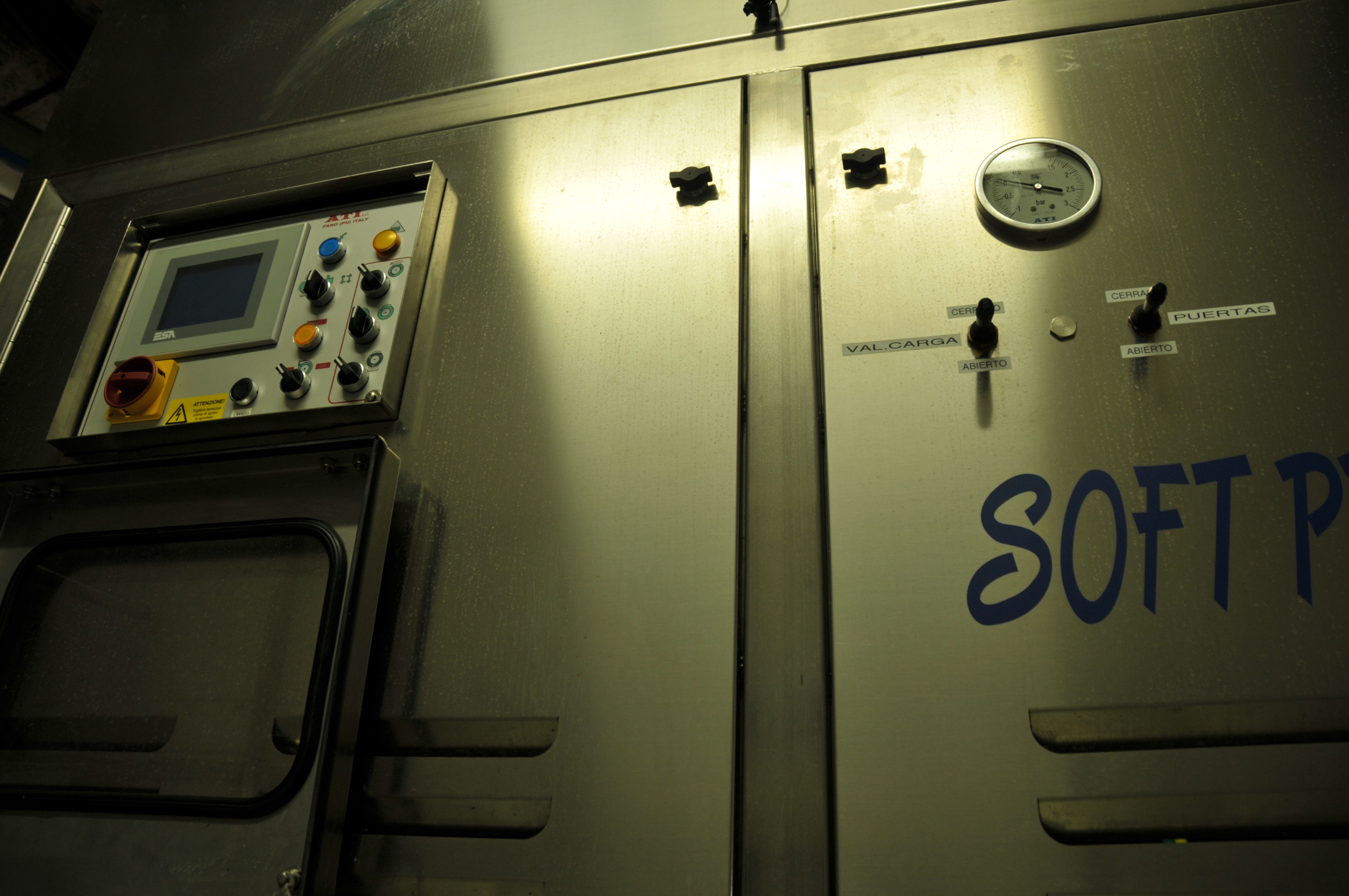

  • Touch Screen Panel for machine control
  • Double electromechanical and electronic panel

Available models 8/10/12/16/24/30/35/45/54

Data sheet
PDF   SOFTPRESS HL 8-54
